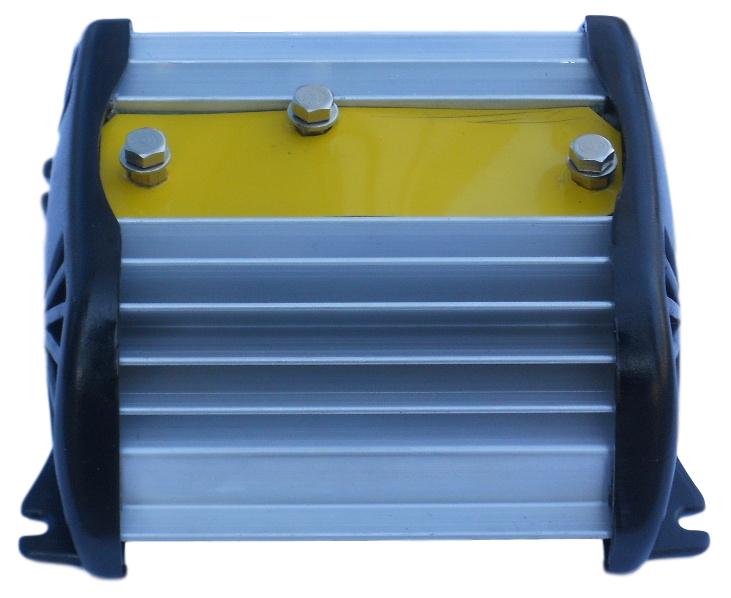

Voltage reducer 20A SMD

Description

Our DC/DC voltage reducer (code EPA30001) is a device with a wide range tensione d’ ingresso, from 16 Vdc to 30 Vdc, che converte la tensione d’ingresso alla tensione di uscita di 13,5Vdc (models are also available with different output voltage da 13,5Vdc, upon request), maximum continuous current 20Adc e 30Adc pulsata. The voltage reducer EPA30001 has a high conversion efficiency (>96%). The maximum power of the device is 270 Watt for 270cc volume equivalent to 1 Watt/cc ! ! ! Applications • Battery backup • Lighting systems • DC motor power supply Features • lead-free versions (RoHS compliant) are also available and with lead-free soldering • Ampia gamma di tensione d’ingresso: 16Vdc – 30Vdc • High continuous output current: 20Adc • High pulsed output current: 30Adc @10ms • Output voltage range: 13.5Vdc ± 0.5Vdc • High efficiency: > 96% • Overcurrent and overtemperature protection • Current traceability during startup and shutdown phases with guaranteed response speed • Fully graduated current delivery. • Real-time internal monitoring and measurements of current and temperature • compact footprint package: 127x136mm • low profile: 66mm • Wide operating temperature range: -40°C ÷ +105°C
