Fuel tank 38 Liters
Fuel tank 38 Liters: professional marine fuel tank by SIC Navy, 38 L, certified and made in Italy. Contact us for a quote.
Warranty Terms: Download The Warranty Policy Here
Download or View Documents
Tank Design & Selection
Description

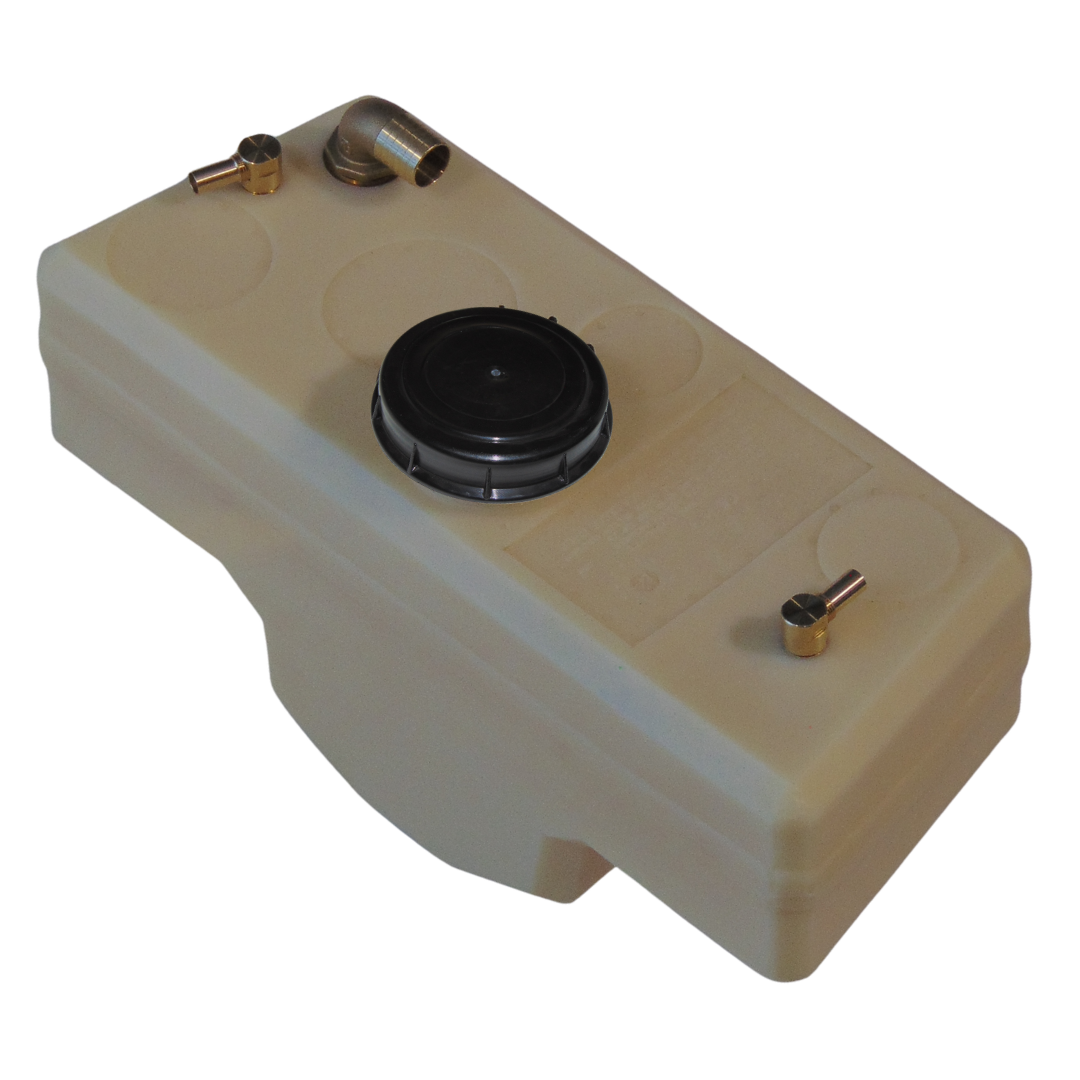

The Fuel tank 38 Liters (SKU HPSC0210.) is a marine fuel tank that is manufactured by SIC Navy, holding 38 litres. It is ideal for tenders, RIBs and small outboard boats where space is tight. It features external dimensions 72.5×29×41 cm, a 38 mm inlet, a 16/19 mm vent and 1 pick-up tube(s).
Exclusive innovation & versatility. All fittings rotate a full 360°, so the tank aligns perfectly with the hull’s geometry and inclination, extending hose life by reducing wear and kinking. The filling inlet is available in 38 mm and 50 mm; for optimal filling we recommend two vent valves on opposite sides (bow and stern), positioned diagonally. Additional pick-up tubes can be integrated to guarantee a constant fuel reserve and prevent engine starvation.
Compliant with Directive 2013/53/EU – reference standards ISO 10088 and ISO 21487. Rigid cross-linked polymer construction, supplied with fittings and an electronic level sensor. For custom configurations, DWG/STEP files or tailored molds, contact the SIC Navy technical team.
Additional information
| Dimensions | 72,5 × 29 × 41 cm |
|---|---|
| Models | Fuel tank 38 Liters |
| Capacity (Litres) | 38 |
| Inlet Diameter (Carico) | 38 |
| Tank Air Vent/Breather mm (Sfiato) | 16/19 |
| N° of Suction Pipes (N° di Pescanti) | 1 |
| Suction Pipe (Pescante) | 12-3/8" |
| SDL Type | STD |
| Sku Code | HPSC0210 |
