Fuel Tank 378 Lt
Fuel Tank 378 Lt: professional marine fuel tank by SIC Navy, 378 L, certified and made in Italy. Contact us for a quote.
Warranty Terms: Download The Warranty Policy Here
Download or View Documents
Tank Design & Selection
Description

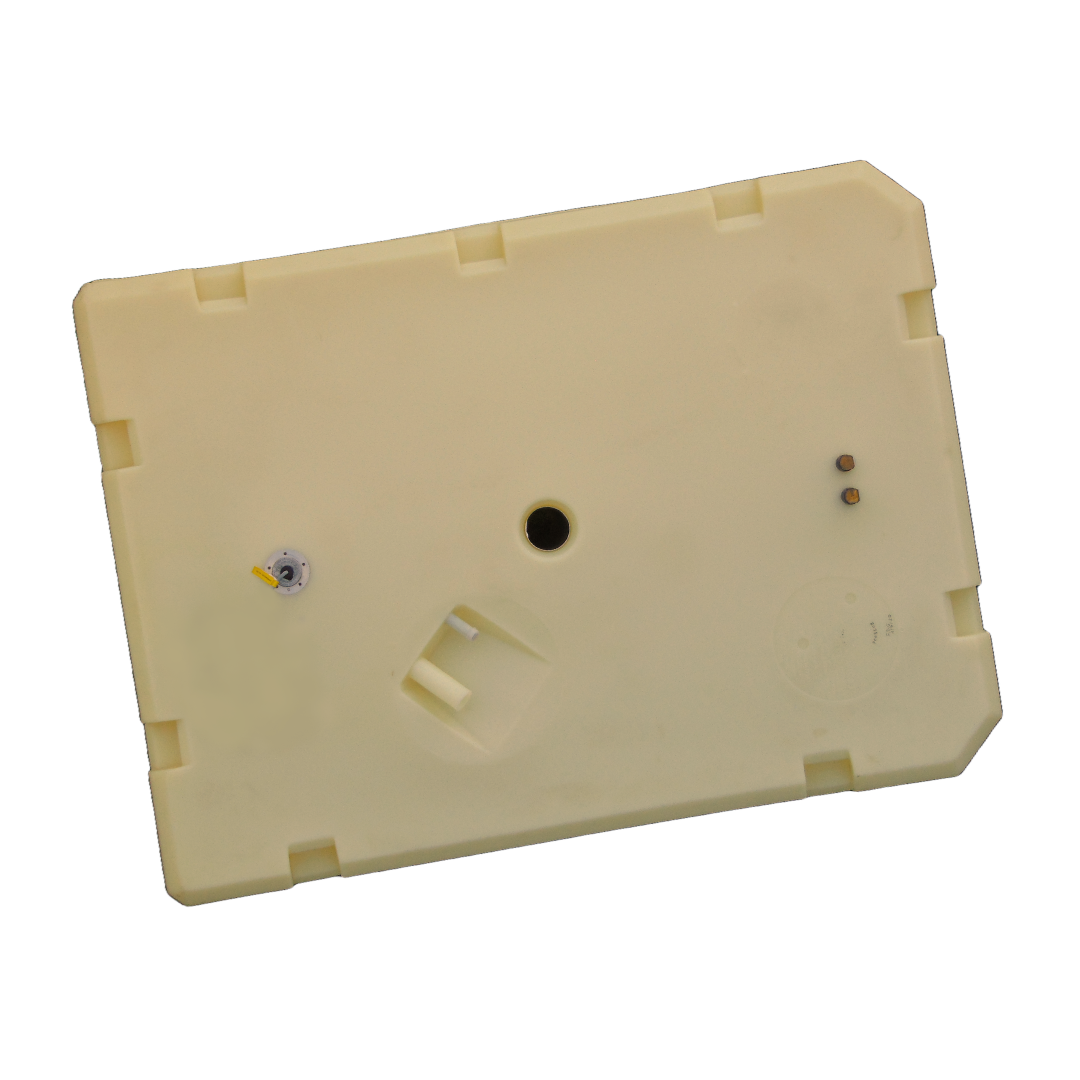

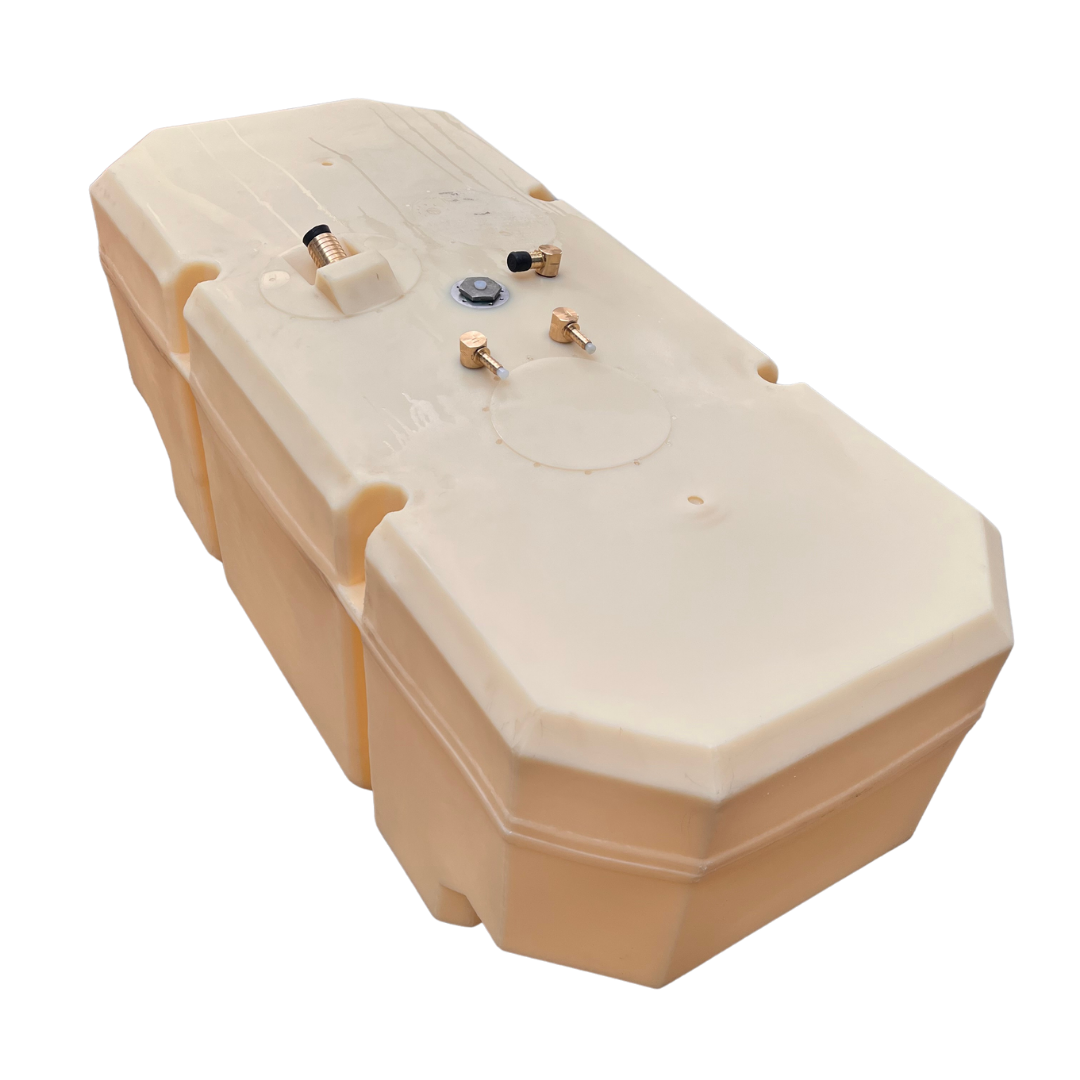

The Fuel Tank 378 Lt (SKU HPSC0215) is a marine fuel tank that is built by SIC Navy, holding 378 litres. It is engineered for large yachts and commercial vessels requiring extended range. It features a 38 mm inlet and a 16/19 mm vent.
Exclusive innovation & versatility. All fittings rotate a full 360°, so the tank aligns perfectly with the hull’s geometry and inclination, extending hose life by reducing wear and kinking. The filling inlet is available in 38 mm and 50 mm; for optimal filling we recommend two vent valves on opposite sides (bow and stern), positioned diagonally. Additional pick-up tubes can be integrated to guarantee a constant fuel reserve and prevent engine starvation.

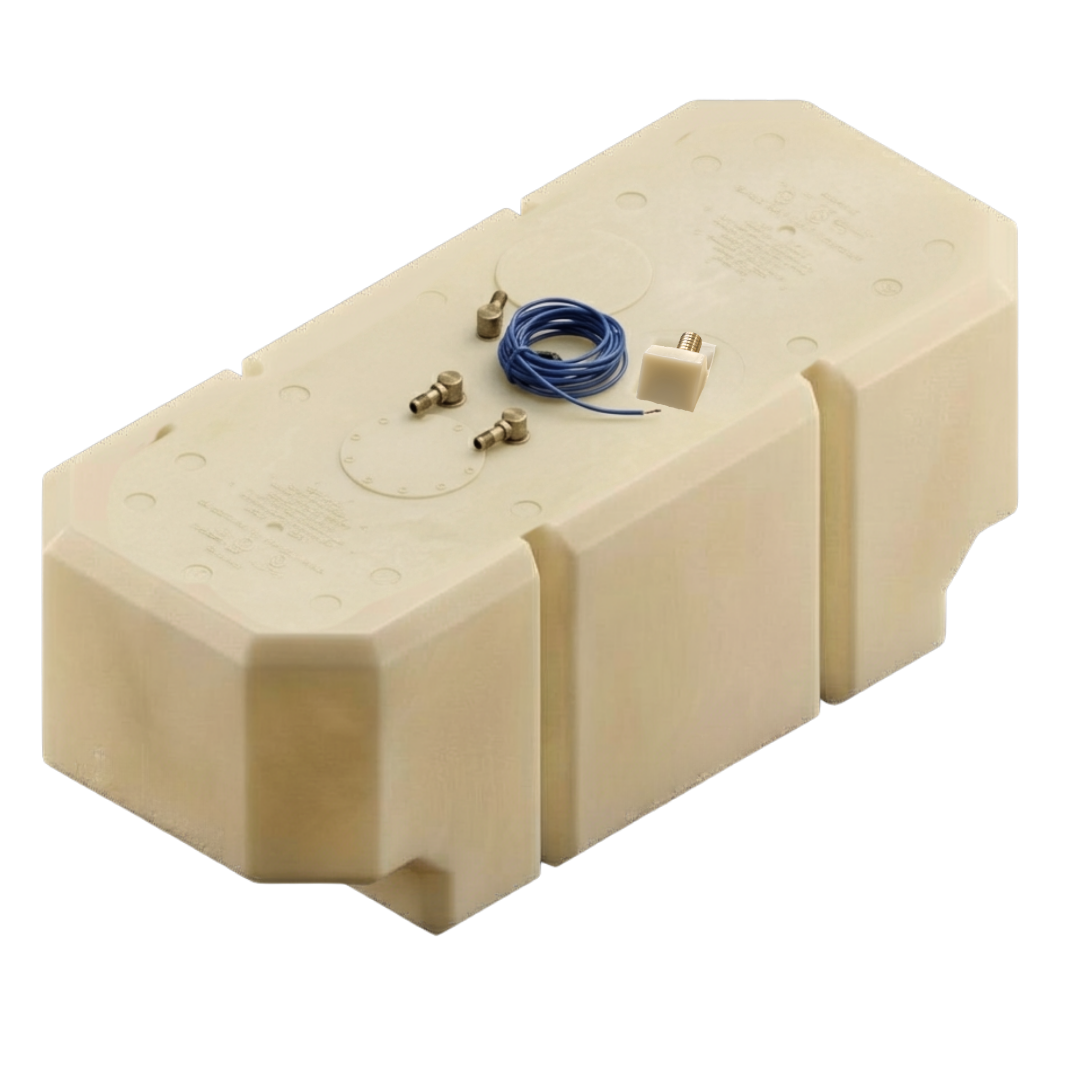

Compliant with Directive 2013/53/EU – reference standards ISO 10088 and ISO 21487. Rigid cross-linked polymer construction, supplied with fittings and an electronic level sensor. For custom configurations, DWG/STEP files or tailored molds, contact the SIC Navy technical team.
Additional information
| Lenght cm | 138 |
|---|---|
| Width cm | 60 |
| Height cm | 56,1 |
| Capacity (Litres) | 378 |
| Inlet Diameter (Carico) | 38 |
| Tank Air Vent/Breather mm (Sfiato) | 16/19 |
| Suction Pipe (Pescante) | 10 – 3/8" |
| Sku Code | HPSC0184 |
