Fuel Tank 713 Lt
Fuel Tank 713 Lt: professional marine fuel tank by SIC Navy, 713 L, certified and made in Italy. Contact us for a quote.
Warranty Terms: Download The Warranty Policy Here
Download or View Documents
Tank Design & Selection
Description

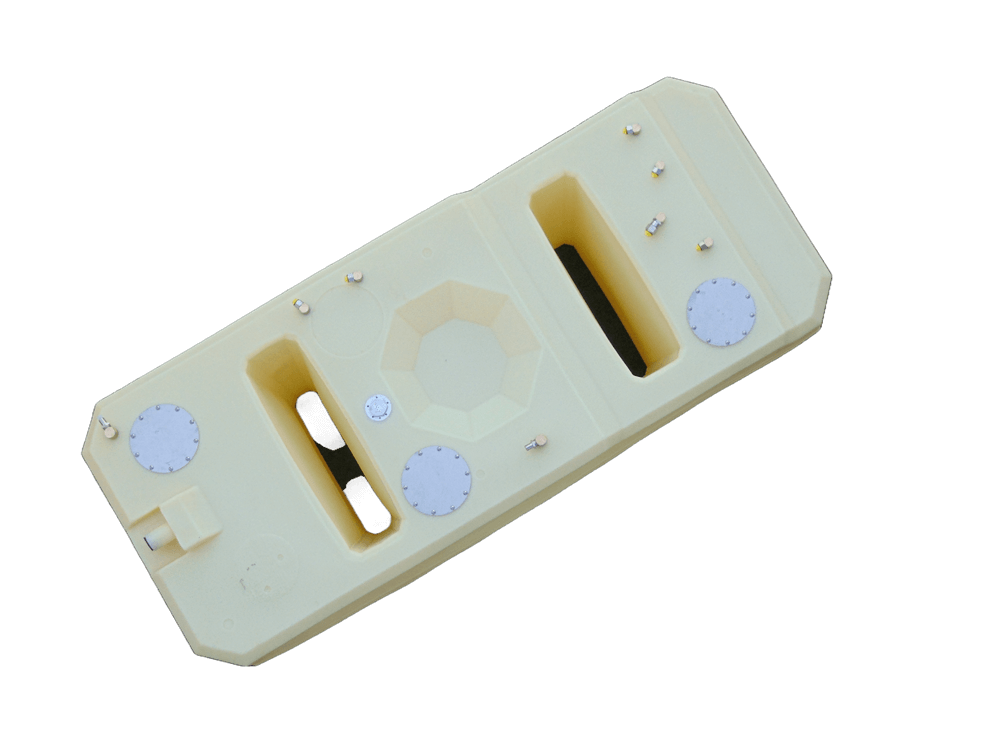

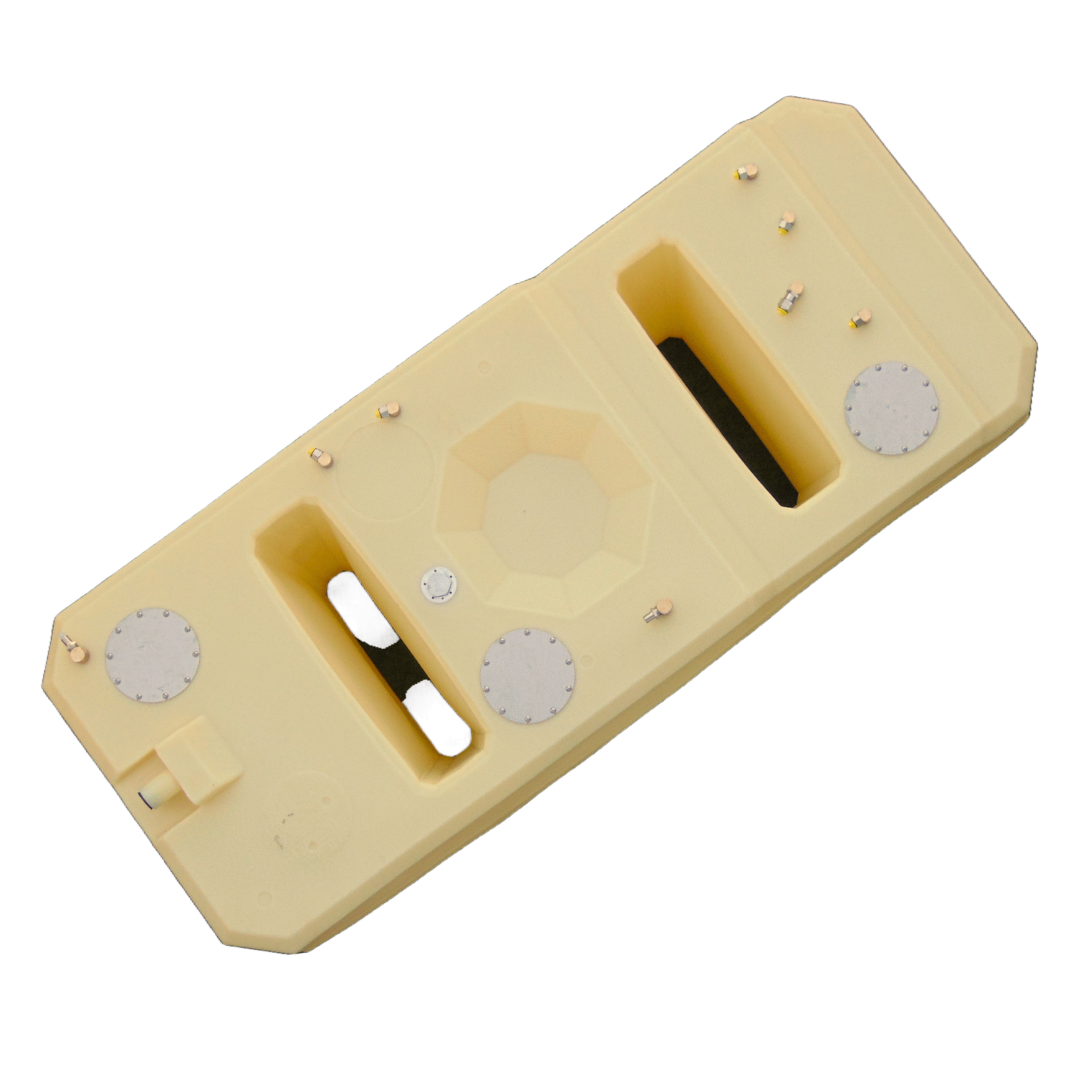

The Fuel Tank 713 Lt (SKU HPSB0137) is a marine fuel tank that is produced by SIC Navy, holding 713 litres. It is engineered for large yachts and commercial vessels requiring extended range. It features a 50 mm inlet and 2 pick-up tube(s).
Exclusive innovation & versatility. All fittings rotate a full 360°, so the tank aligns perfectly with the hull’s geometry and inclination, extending hose life by reducing wear and kinking. The filling inlet is available in 38 mm and 50 mm; for optimal filling we recommend two vent valves on opposite sides (bow and stern), positioned diagonally. Additional pick-up tubes can be integrated to guarantee a constant fuel reserve and prevent engine starvation.
Compliant with Directive 2013/53/EU – reference standards ISO 10088 and ISO 21487. Rigid cross-linked polymer construction, supplied with fittings and an electronic level sensor. For custom configurations, DWG/STEP files or tailored molds, contact the SIC Navy technical team.
Additional information
| Lenght cm | 196,5 |
|---|---|
| Width cm | 80,5 |
| Height cm | 70,5 |
| Weight kg | 44 |
| Capacity (Litres) | 713 |
| Inlet Diameter (Carico) | 50 |
| N° of Suction Pipes (N° di Pescanti) | 2 |
| pescante 1 | №6 3/8"G |
| pescante 2 | №2 1/2"G |
