Fuel Tank 82 Lt
Fuel Tank 82 Lt: professional marine fuel tank by SIC Navy, 82 L, certified and made in Italy. Contact us for a quote.
Warranty Terms: Download The Warranty Policy Here
Download or View Documents
Tank Design & Selection
Description

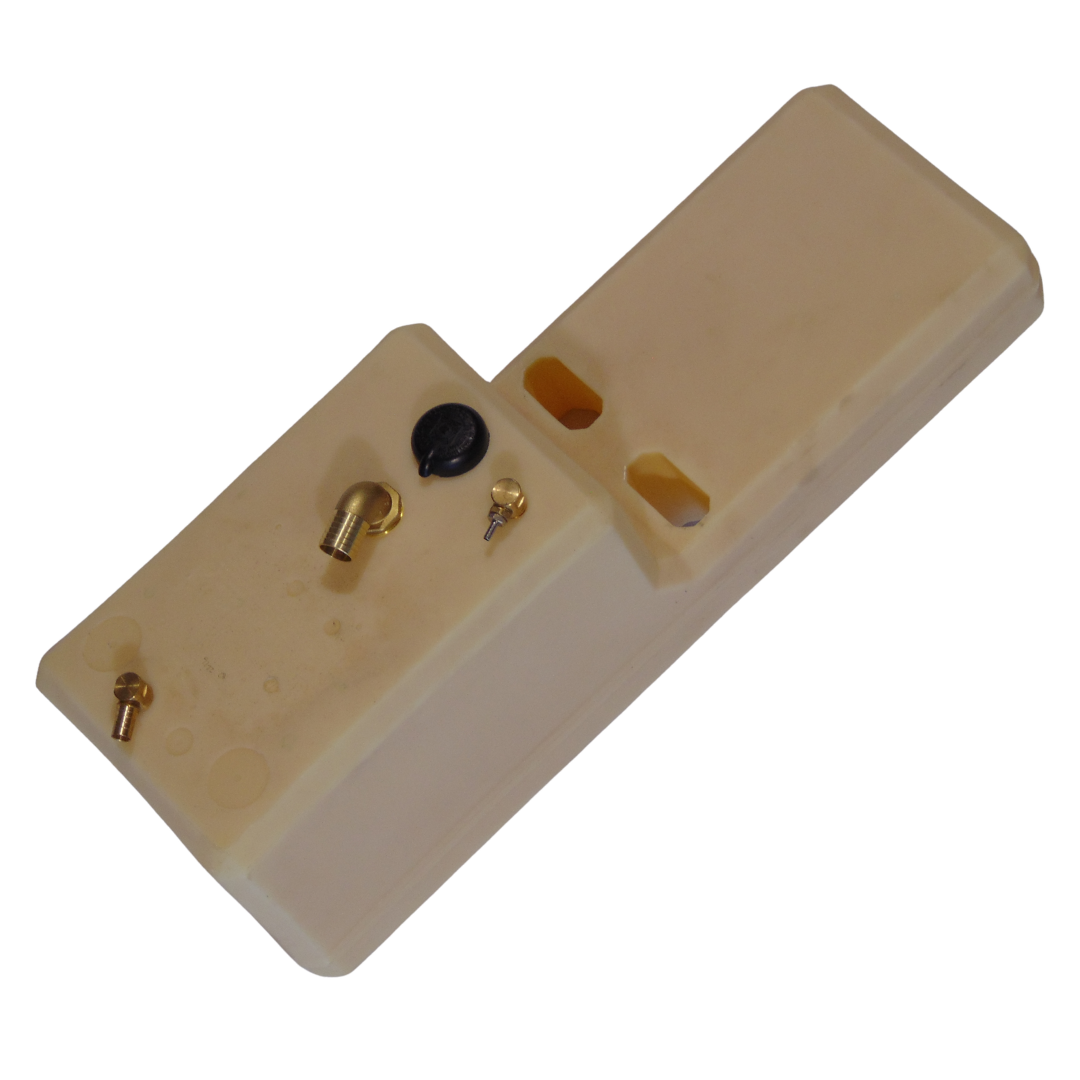

The Fuel Tank 82 Lt (SKU HPSB0162-GAS) is a marine fuel tank that is built by SIC Navy, holding 82 litres. It is well suited to day cruisers and small motor yachts needing a reliable range. It features a 38 mm inlet and a 16|20 mm vent.
Exclusive innovation & versatility. All fittings rotate a full 360°, so the tank aligns perfectly with the hull’s geometry and inclination, extending hose life by reducing wear and kinking. The filling inlet is available in 38 mm and 50 mm; for optimal filling we recommend two vent valves on opposite sides (bow and stern), positioned diagonally. Additional pick-up tubes can be integrated to guarantee a constant fuel reserve and prevent engine starvation.
Compliant with Directive 2013/53/EU – reference standards ISO 10088 and ISO 21487. Rigid cross-linked polymer construction, supplied with fittings and an electronic level sensor. For custom configurations, DWG/STEP files or tailored molds, contact the SIC Navy technical team.
Additional information
| Lenght cm | 103 |
|---|---|
| Width cm | 34.5 |
| Height cm | 39.5 |
| Weight kg | 7 |
| Capacity (Litres) | 82 |
| Inlet Diameter (Carico) | 38 |
| Tank Air Vent/Breather mm (Sfiato) | 16, 20 |
| Suction Pipe (Pescante) | 10, 12, 13, 14, 16, 20, 8 |
