Fuel Tank 89 Lt
Fuel Tank 89 Lt: professional marine fuel tank by SIC Navy, 89 L, certified and made in Italy. Contact us for a quote.
Warranty Terms: Download The Warranty Policy Here
Download or View Documents
Description

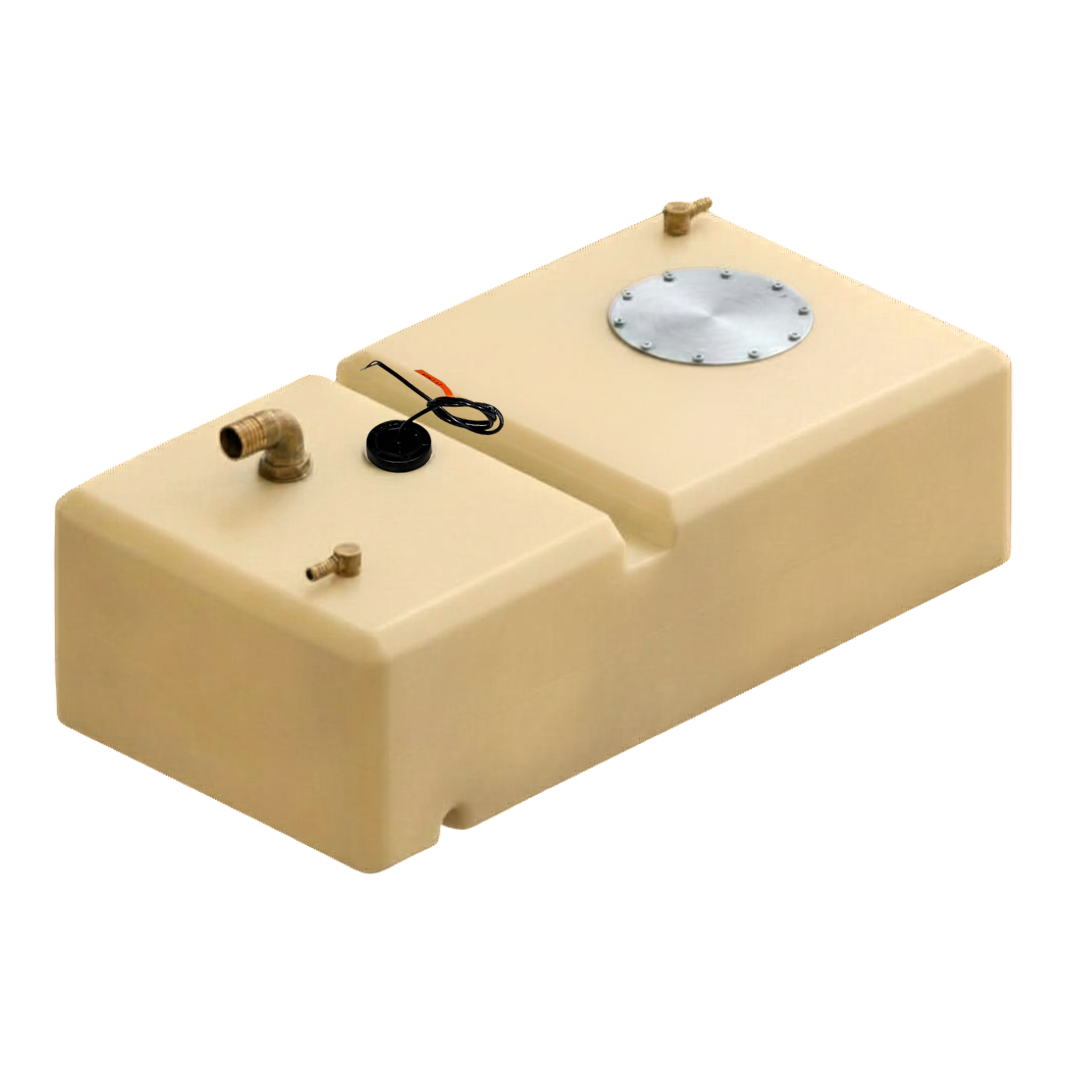

The Fuel Tank 89 Lt (SKU HPSB0187-DIESEL) is a marine fuel tank that is manufactured by SIC Navy, holding 89 litres. It is well suited to day cruisers and small motor yachts needing a reliable range. It features a 50 mm inlet, a 16/19 mm vent and 1 pick-up tube(s).
Exclusive innovation & versatility. All fittings rotate a full 360°, so the tank aligns perfectly with the hull’s geometry and inclination, extending hose life by reducing wear and kinking. The filling inlet is available in 38 mm and 50 mm; for optimal filling we recommend two vent valves on opposite sides (bow and stern), positioned diagonally. Additional pick-up tubes can be integrated to guarantee a constant fuel reserve and prevent engine starvation.
Compliant with Directive 2013/53/EU – reference standards ISO 10088 and ISO 21487. Rigid cross-linked polymer construction, supplied with fittings and an electronic level sensor. For custom configurations, DWG/STEP files or tailored molds, contact the SIC Navy technical team.
Additional information
| Lenght cm | 80 |
|---|---|
| Width cm | 40 |
| Height cm | 32 |
| Capacity (Litres) | 89 |
| Inlet Diameter (Carico) | 50 |
| Tank Air Vent/Breather mm (Sfiato) | 16/19 |
| N° of Suction Pipes (N° di Pescanti) | 1 |
| Suction Pipe (Pescante) | 12-3/8" |
| SDL Type | VDO |
| Sku Code | HPSB0187-DIESEL |
